WW-C07 · Steel commercial wheels

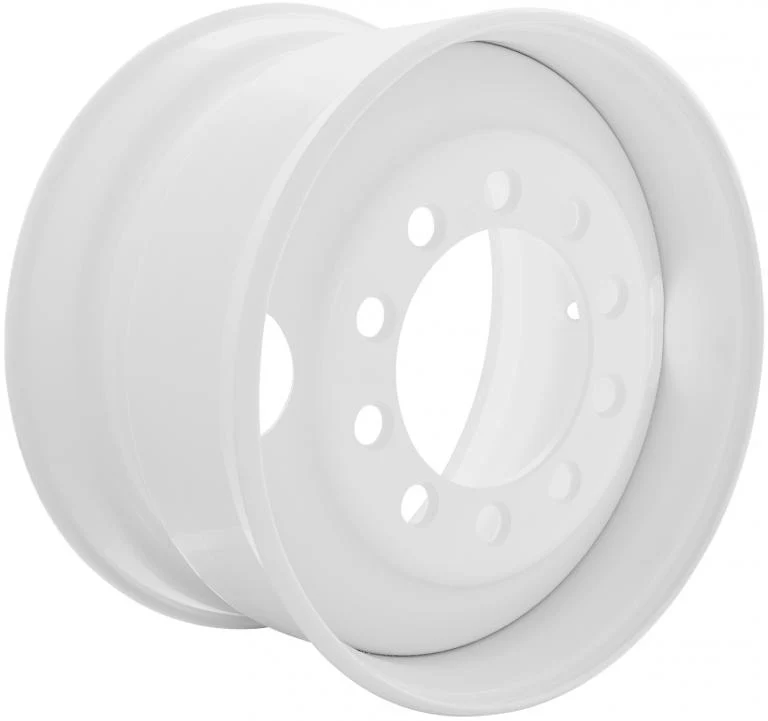

Wide-Base Stud-Piloted Steel Wheel
Legacy vocational applications retaining this specific mounting system.
| Wheel / rim size | 22.5 x 12.25 in (571.5 x 311.15 mm) |
|---|---|
| Bolt pattern | 10 x 11.250 in (10 x 285.75 mm) |
| Pilot bore | 8.72 in (221.488 mm) |
| Reference offset | 4.75 in (120.65 mm) |
Legacy fitment. Confirm availability, replacement approval and mounting interface before ordering.
Construction & Material
Wide steel rim with a reinforced disc and stud-piloted nut seats.
Options
Finish and matching valve; approved replacement geometry.
Size options
Dimensions and mounting interface are confirmed against the approved model drawing.
Procurement Value
Service-specific inventory can support repeat orders where fleets retain older interfaces.
Mounting & Selection
Hub/stud pilot, bolt circle, bore, disc thickness, outset/inset, axle position, required wheel load and inflation pressure.
Standards & Qualification
FMVSS 120 applicability and rim markings; SAE J267 test program as applicable. No certification is asserted.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
